920-061-305 TE Connectivity 100% cross INGKE 920-061-305

INGKE 920-061-305 100% replace 920-061-305 TE Connectivity RF antennas

Part No.:920-061-305 TE Connectivity

INGKE Part No.:YKRF-920-061-305

Made in China:INGKE TECHNOLOGY

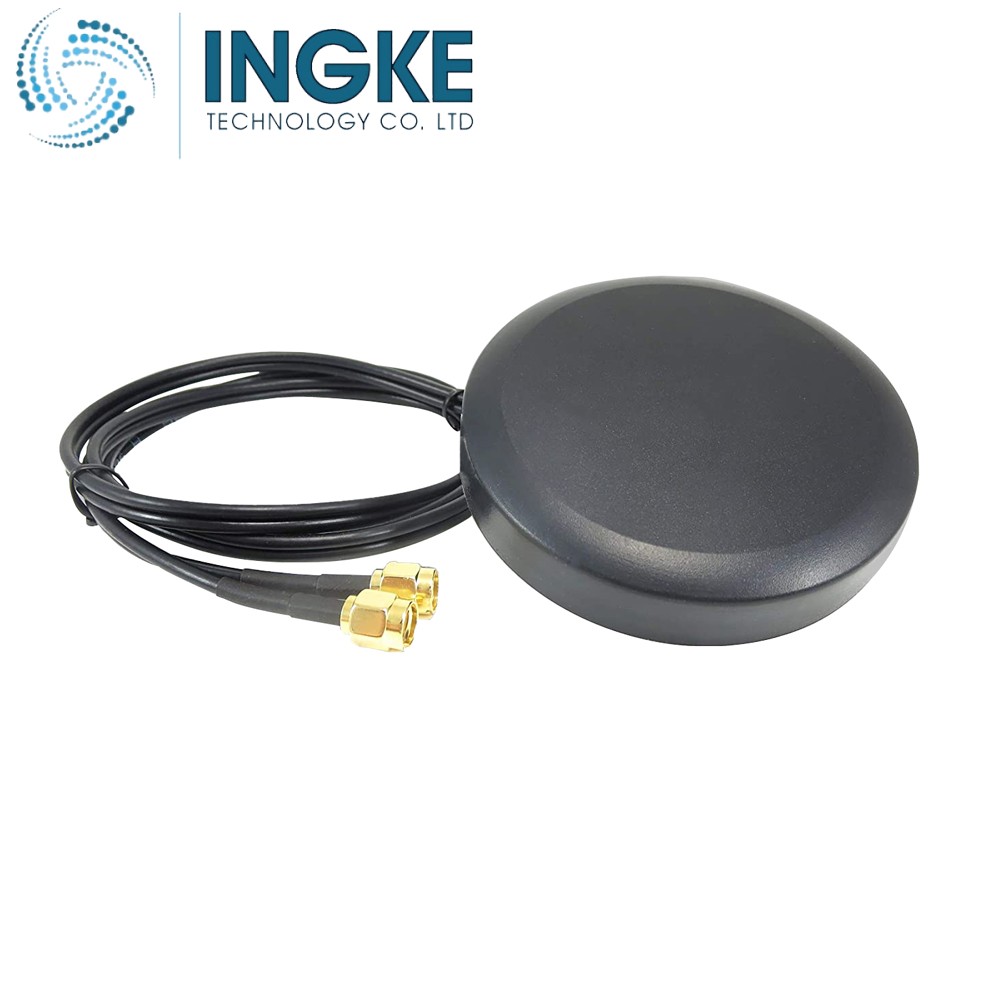

Description:920-061-305 TE Connectivity RF antennas

Lead Time:1-2 Weeks

MOQ:1PCS

Manufacturer:TE Connectivity

TE Internal #:920-061-305

TE Internal Description:GPS 1890 LP/P/FAKRA/3.0

Wireless Application:Cellular, GNSS, Vehicular

Mounting Location:External

Mounting Type:Adhesive

Antenna Termination:Fakra

Antenna Type:Dome/Puck

Impedance (Ω):50

VSWR (Max):< 2.0:1

Antenna Operation:Active

Frequency Band (MHz):824 – 960, 1559 – 1591, 1563 – 1587, 1575.42, 1710 – 2170

Nominal Frequency Range:698 – 2700

Peak Gain (dBi):0 < 3

Gain (Max) (dB):0, 2

Product Height:21 mm [ .82 in ]

Product Length:100 mm [ 3.93 in ]

Product Width:66 mm [ 2.59 in ]

Cable Length:3 m [ 9.84 ft ]

Cable Insulation Diameter (Max):2.8 mm [ .11 in ]

RoHS Compliant and REACH

100% compatible,100% test, warranty for 60 months

Factory with UL,supplier of Marvell & Honeywell
