602-442-003 TE Connectivity 100% cross INGKE 602-442-003

INGKE 602-442-003 100% replace 602-442-003 TE Connectivity RF antennas

Part No.:602-442-003 TE Connectivity

INGKE Part No.:YKRF-602-442-003

Made in China:INGKE TECHNOLOGY

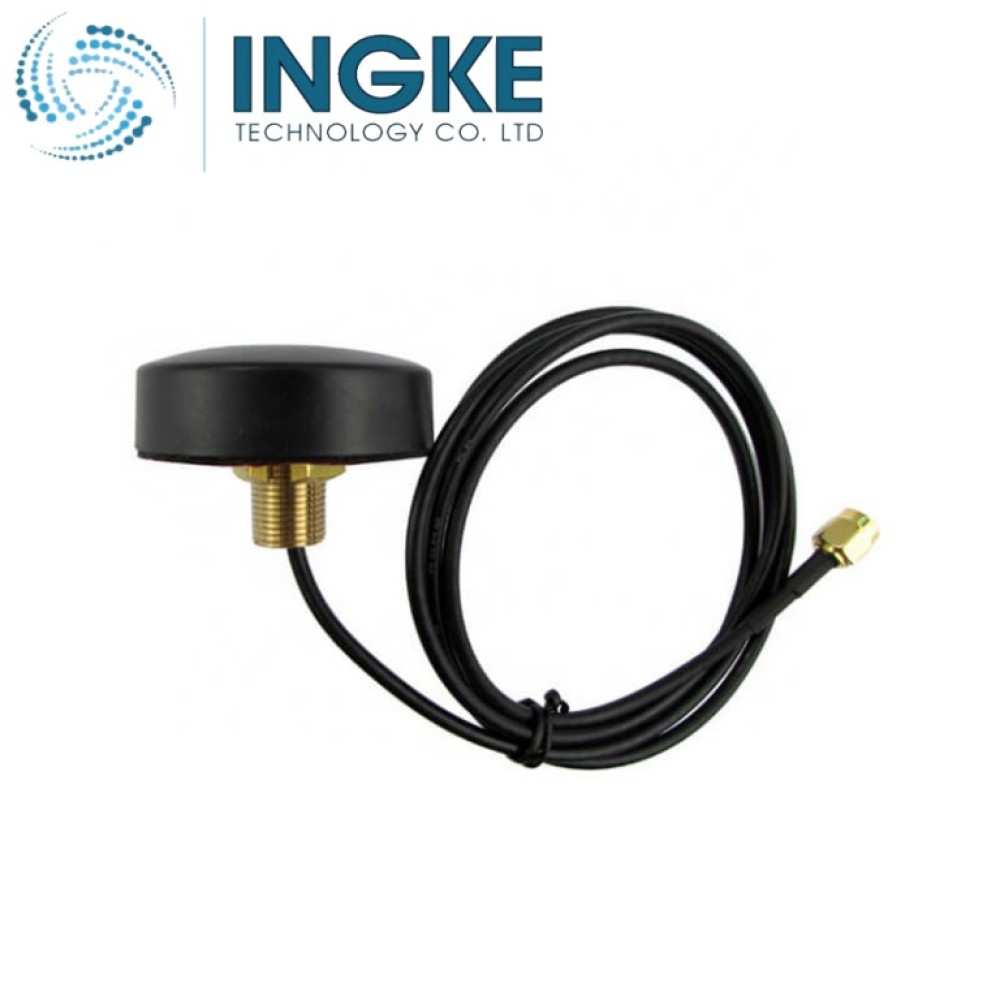

Description:602-442-003 TE Connectivity RF antennas

Lead Time:1-2 Weeks

MOQ:1PCS

Manufacturer:TE Connectivity

TE Internal #:602-442-003

TE Internal Description:GNSS 11 S/0.2 SMB

Wireless Application:GNSS, Vehicular

Mounting Location:External

Mounting Type:Stud/Screw/Lug Mount

Antenna Termination:SMB

Antenna Type:Dome/Puck

Impedance (Ω):50

VSWR (Max):< 2.0:1

Antenna Operation:Active

Frequency Band (MHz):1563 – 1587, 1575.42, 1602 – 1614.94

Nominal Frequency Range:1420 – 1620

Peak Gain (dBi):0 < 3

Gain (Max) (dB):2

Product Height:19 mm [ .74 in ]

Product Length:63 mm [ 2.48 in ]

Product Width:63 mm [ 2.48 in ]

Cable Length:.2 m [ .66 ft ]

Cable Insulation Diameter (Max):2.8 mm [ .11 in ]

RoHS Compliant and REACH

100% compatible,100% test, warranty for 60 months

Factory with UL,supplier of Marvell & Honeywell
