602-440-001 TE Connectivity 100% cross INGKE 602-440-001

INGKE 602-440-001 100% replace 602-440-001 TE Connectivity RF antennas

Part No.:602-440-001 TE Connectivity

INGKE Part No.:YKRF-602-440-001

Made in China:INGKE TECHNOLOGY

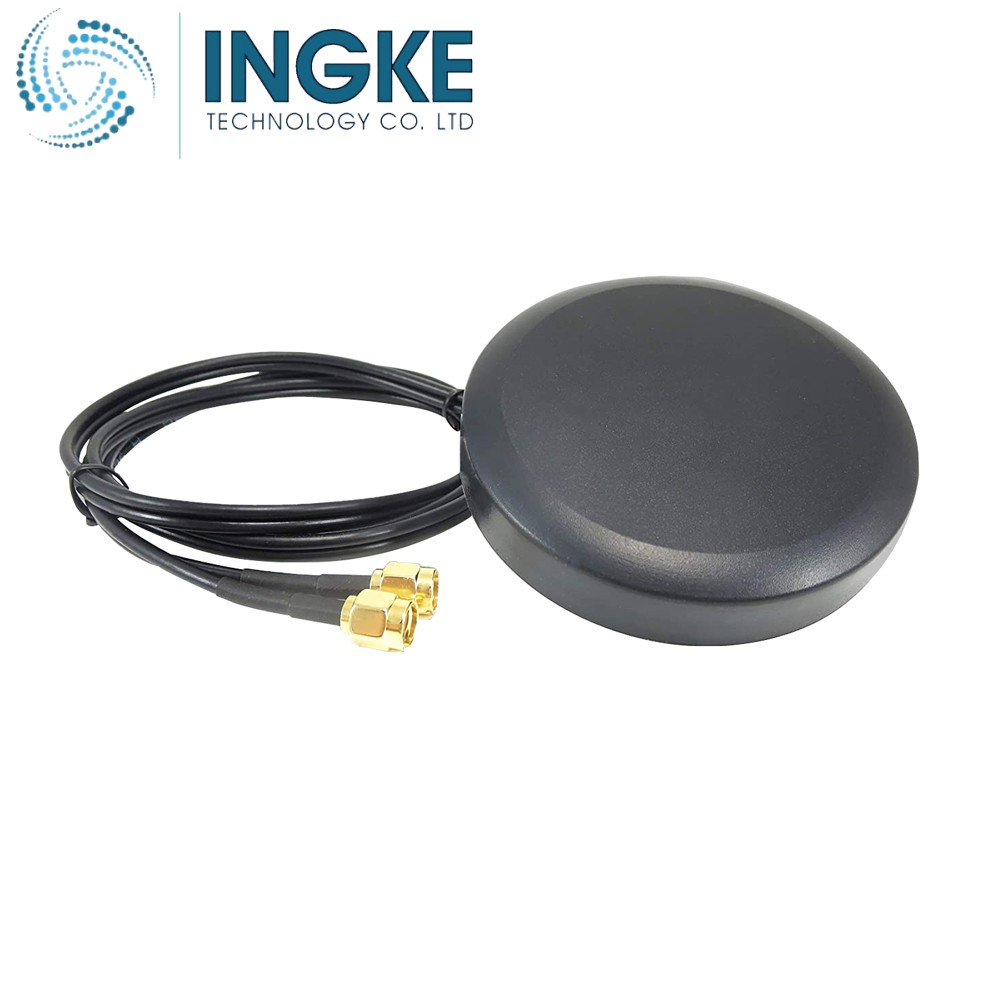

Description:602-440-001 TE Connectivity RF antennas

Lead Time:1-2 Weeks

MOQ:1PCS

Manufacturer:TE Connectivity

TE Internal #:602-440-001

TE Internal Description:CGN 1890 LP/LC/P/SMA/FME/3.0

Wireless Application:Cellular, GNSS, Vehicular

Mounting Location:External

Mounting Type:Adhesive

Antenna Termination:FME, SMA

Antenna Type:Dome/Puck

Impedance (Ω):50

VSWR (Max):< 2.0:1

Antenna Operation:Active

Frequency Band (MHz):824 – 960, 1559 – 1591, 1563 – 1587, 1575.42, 1602 – 1614.94, 1710 – 2170

Nominal Frequency Range:698 – 2700

Peak Gain (dBi):0 < 3

Gain (Max) (dB):0, 1

Product Height:20 mm [ .78 in ]

Product Length:102 mm [ 4.01 in ]

Product Width:66 mm [ 2.59 in ]

Cable Length:3 m [ 9.84 ft ]

Cable Insulation Diameter (Max):2.8 mm [ .11 in ]

RoHS Compliant and REACH

100% compatible,100% test, warranty for 60 months

Factory with UL,supplier of Marvell & Honeywell
