2118309-2 TE Connectivity 100% cross INGKE 2118309-2

INGKE 2118309-2 100% replace 2118309-2 TE Connectivity RF antennas

Part No.:2118309-2 TE Connectivity

INGKE Part No.:YKRF-2118309-2

Made in China:INGKE TECHNOLOGY

Description:2118309-2 TE Connectivity RF antennas

Lead Time:1-2 Weeks

MOQ:1PCS

Manufacturer:TE Connectivity

TE Internal #:2118309-2

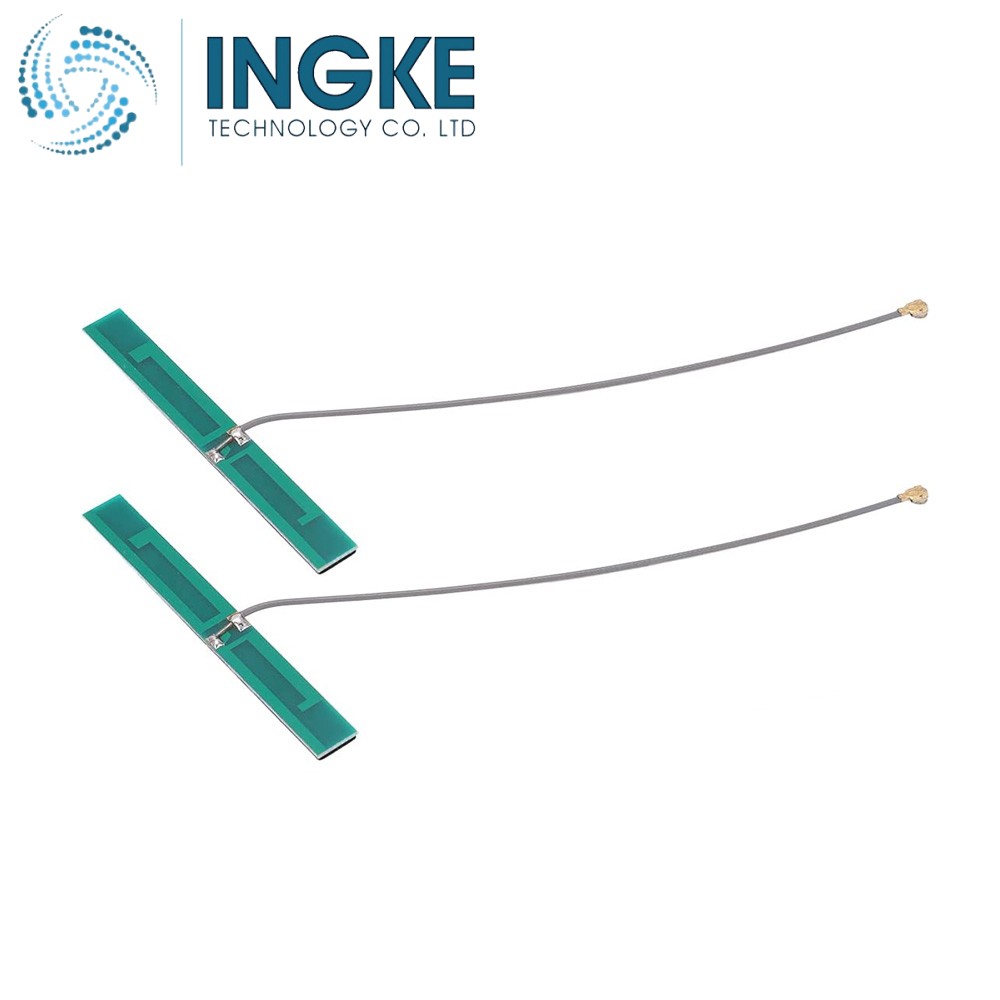

TE Internal Description:DUAL BAND WIFI, 2.4 & 5GHZ, PCB W/CABLE

Wireless Application:Bluetooth, Wi-Fi, Zigbee

Mounting Location:Internal/Embedded

Mounting Type:Adhesive

Antenna Termination:MHF, MHF1, U.FL, UMCC

Antenna Type:PCB

Impedance (Ω):50

VSWR (Max):<2:1

Antenna Operation:Passive

Nominal Frequency Range:2400 – 5950

Peak Gain (dBi):3 < 6

Gain (Max) (dB):3.7

Product Height:1 mm [ .039 in ]

Product Length:40.16 mm [ 1.575 in ]

Product Width:8 mm [ .315 in ]

Cable Length:.27 m [ .89 ft ]

RoHS Compliant and REACH

100% compatible,100% test, warranty for 60 months

Factory with UL,supplier of Marvell & Honeywell
