2108937-4 TE Connectivity 100% cross INGKE 2108937-4

INGKE 2108937-4 100% replace 2108937-4 TE Connectivity RF antennas

Part No.:2108937-4 TE Connectivity

INGKE Part No.:YKRF-2108937-4

Made in China:INGKE TECHNOLOGY

Description:2108937-4 TE Connectivity RF antennas

Lead Time:1-2 Weeks

MOQ:1PCS

Manufacturer:TE Connectivity

TE Internal #:2108937-4

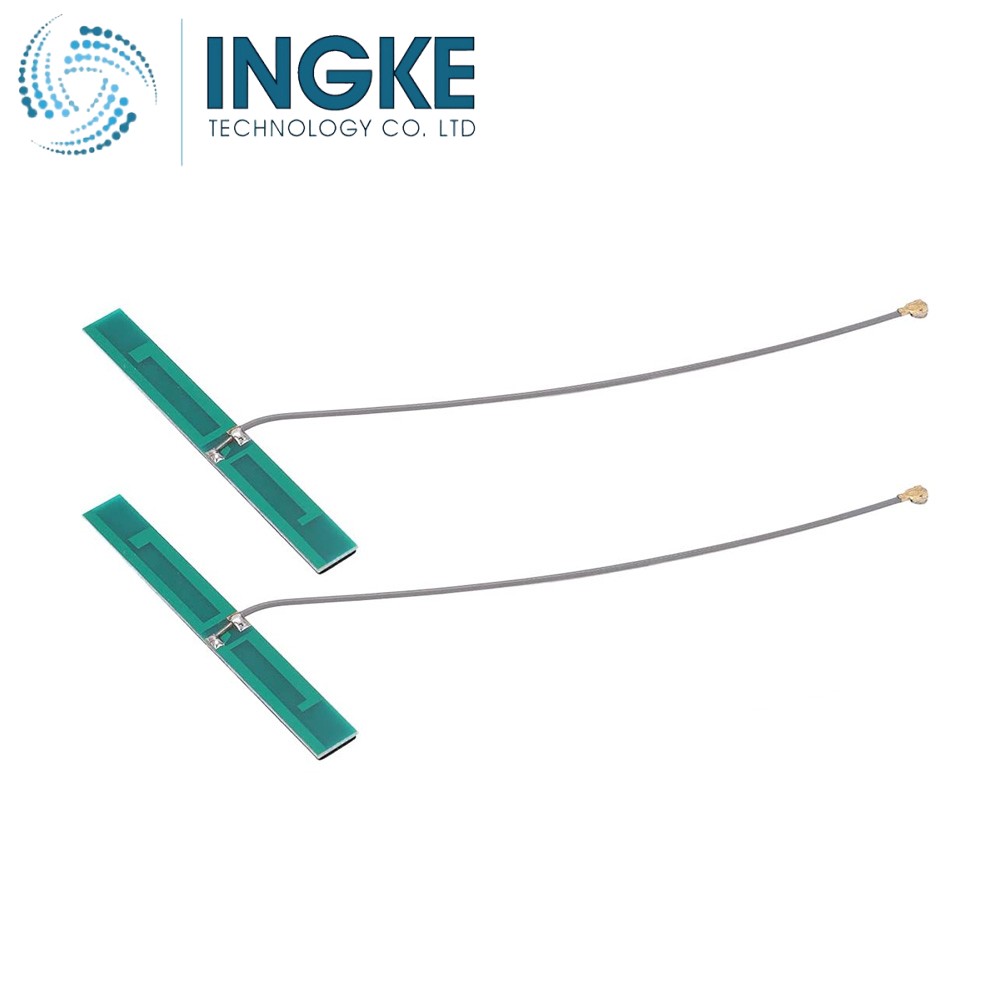

TE Internal Description:FPC ANT, MHF, 200mm, GNSS+ Wi-Fi 6E

Wireless Application:Bluetooth, GNSS, Wi-Fi, Zigbee

Mounting Location:Internal/Embedded

Mounting Type:Adhesive

Antenna Termination:MHF, MHF1, U.FL, UMCC

Antenna Type:Flexible PCB (FPC)

Impedance (Ω):50

VSWR (Max):<1.8:1

Antenna Operation:Passive

Frequency Band (MHz):1559 – 1610, 2400 – 2500, 5150 – 5875, 5925 – 7125

Peak Gain (dBi):3 < 6

Gain (Max) (dB):4.2

Product Height:.15 mm [ .059 in ]

Product Length:50 mm [ 1.968 in ]

Product Width:15 mm [ .59 in ]

Cable Length:.2 m [ .66 ft ]

Mounting Type:Adhesive

Polarization:Linear

RoHS Compliant and REACH

100% compatible,100% test, warranty for 60 months

Factory with UL,supplier of Marvell & Honeywell
