1-2118909-2 TE Connectivity 100% cross INGKE 1-2118909-2

INGKE 1-2118909-2 100% replace 1-2118909-2 TE Connectivity RF antennas

Part No.:1-2118909-2 TE Connectivity

INGKE Part No.:YKRF-1-2118909-2

Made in China:INGKE TECHNOLOGY

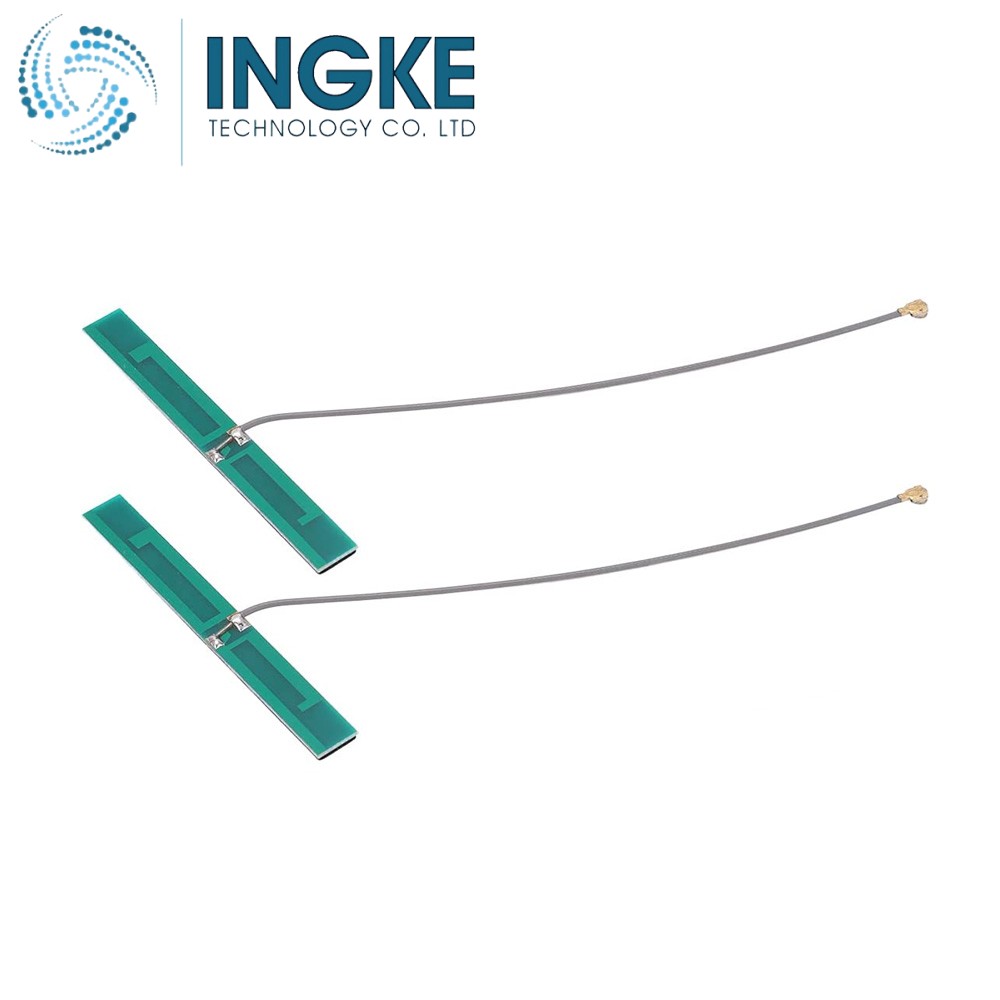

Description:1-2118909-2 TE Connectivity RF antennas

Lead Time:1-2 Weeks

MOQ:1PCS

Manufacturer:TE Connectivity

TE Internal #:1-2118909-2

TE Internal Description:PCB Ant, MHF, 100mm, Wi-Fi 6E Triple

Wireless Application:Bluetooth, Wi-Fi, Zigbee

Mounting Location:Internal/Embedded

Mounting Type :Adhesive

Antenna Termination:MHF, MHF1, U.FL, UMCC

Antenna Type:PCB

Impedance (Ω):50

Antenna Operation:Passive

Frequency Band (MHz):2320 – 2680, 5150 – 5875, 5925 – 7125

Nominal Frequency Range:2400 – 7125

Peak Gain (dBi):3 < 6

Gain (Max) (dB):4.2

Product Height:1 mm [ .039 in ]

Product Length:40 mm [ 3.937 in ]

Product Width:8 mm [ .314 in ]

Cable Length:.1 m [ .33 ft ]

Mounting Type:Adhesive

Polarization:Linear

RoHS Compliant and REACH

100% compatible,100% test, warranty for 60 months

Factory with UL,supplier of Marvell & Honeywell
