2108948-7 TE Connectivity 100% cross INGKE 2108948-7

INGKE 2108948-7 100% replace 2108948-7 TE Connectivity RF antennas

Part No.:2108948-7 TE Connectivity

INGKE Part No.:YKRF-2108948-7

Made in China:INGKE TECHNOLOGY

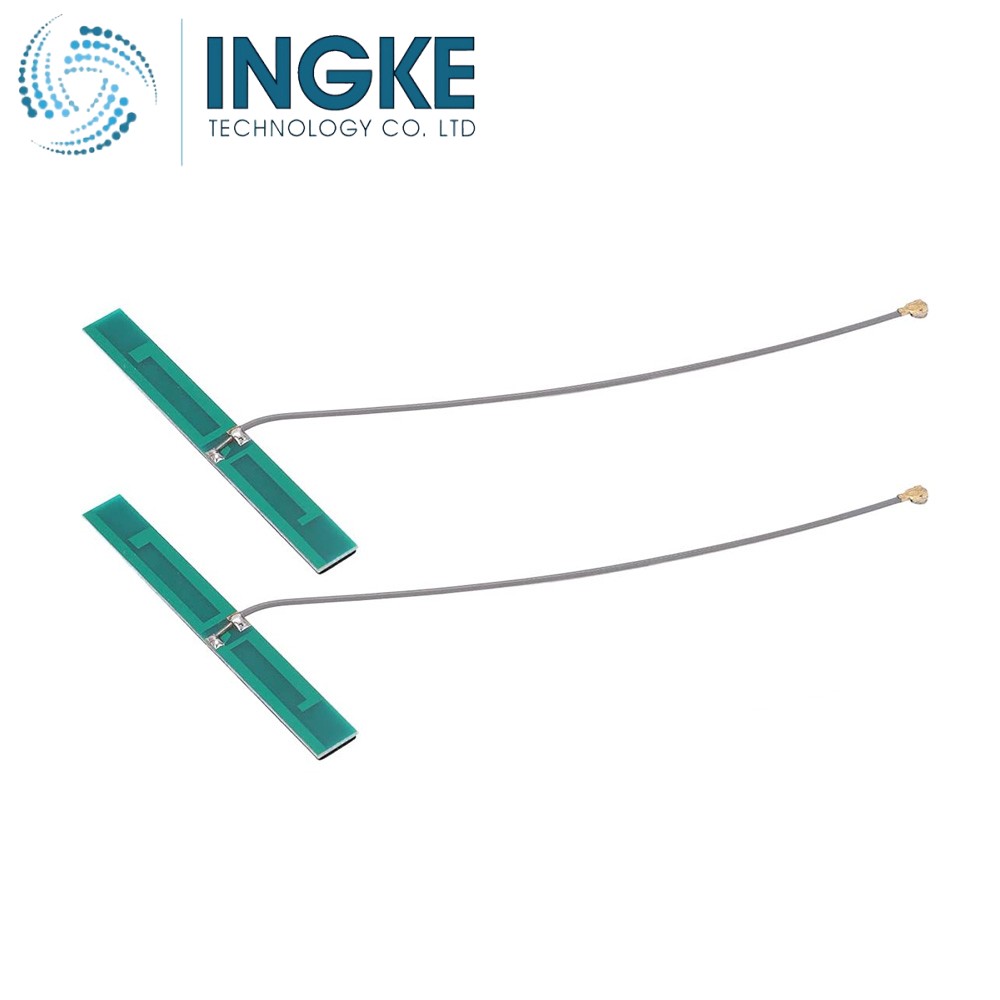

Description:2108948-7 TE Connectivity RF antennas

Lead Time:1-2 Weeks

MOQ:1PCS

Manufacturer:TE Connectivity

TE Internal #:2108948-7

TE Internal Description:PCB Ant, MHF4L, 150mm, 617-7125MHz

Wireless Application:5G, Cat-M/NB-IoT, Cellular, GNSS, Wi-Fi

Mounting Location:Internal/Embedded

Mounting Type:Adhesive

Antenna Termination:MHF4

Antenna Type:PCB

Impedance (Ω):50

VSWR (Max):<3.9:1

Antenna Operation:Passive

Frequency Band (MHz):690 – 710, 1850 – 4000, 5000 – 7125

Nominal Frequency Range:617 – 7125

Peak Gain (dBi):3 < 6

Gain (Max) (dB):3.9

Product Height:.55 mm [ .004 in ]

Product Length:20 mm [ .78 in ]

Product Width:119.3 mm [ 4.69 in ]

Cable Length:.15 m [ .49 ft ]

Cable Insulation Diameter (Max):.9 mm [ .035 in ]

RoHS Compliant and REACH

100% compatible,100% test, warranty for 60 months

Factory with UL,supplier of Marvell & Honeywell
