2108793-1 TE Connectivity 100% cross INGKE 2108793-1

INGKE 2108793-1 100% replace 2108793-1 TE Connectivity RF antennas

Part No.:2108793-1 TE Connectivity

INGKE Part No.:YKRF-2108793-1

Made in China:INGKE TECHNOLOGY

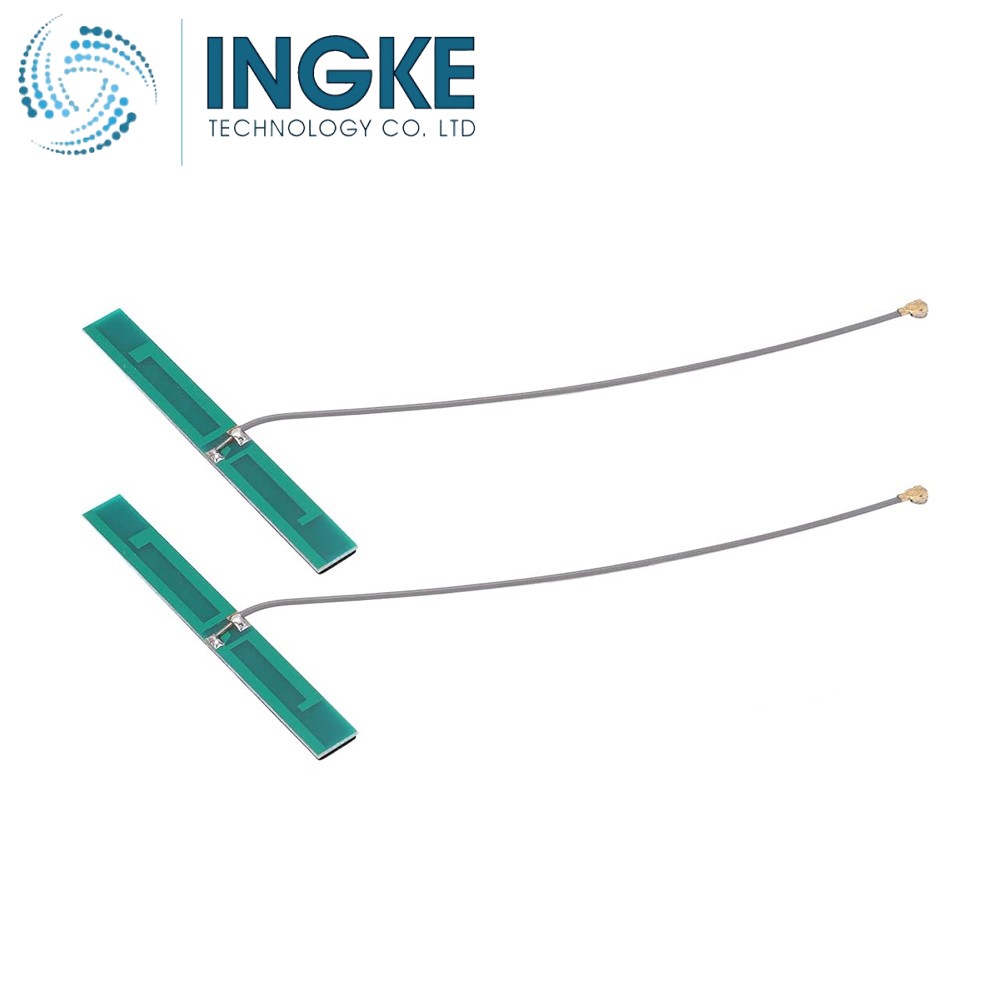

Description:2108793-1 TE Connectivity RF antennas

Lead Time:1-2 Weeks

MOQ:1PCS

Manufacturer:TE Connectivity

TE Internal #:2108793-1

TE Internal Description:FPC Ant,MMCX,170mm,824-960&2400-2500MHz

Wireless Application:Bluetooth, ISM, Wi-Fi, Zigbee

Mounting Location:Internal/Embedded

Mounting Type:Adhesive

Antenna Termination:MMCX

Antenna Type:Flexible PCB (FPC)

Impedance (Ω):50

VSWR (Max):<2.1:1

Antenna Operation:Passive

Frequency Band (MHz):824 – 960, 2400 – 2500

Nominal Frequency Range:698 – 960

Peak Gain (dBi):0 < 3

Gain (Max) (dB):2, 2.1

Product Height:.3 mm [ .012 in ]

Product Length:140 mm [ 5.512 in ]

Product Width:20 mm [ .787 in ]

Cable Length:.19 m [ .62 ft ]

RoHS Compliant and REACH

100% compatible,100% test, warranty for 60 months

Factory with UL,supplier of Marvell & Honeywell
