1-2344654-0 TE Connectivity 100% cross INGKE 1-2344654-0

INGKE 1-2344654-0 100% replace 1-2344654-0 TE Connectivity RF antennas

Part No.:1-2344654-0 TE Connectivity

INGKE Part No.:YKRF-1-2344654-0

Made in China:INGKE TECHNOLOGY

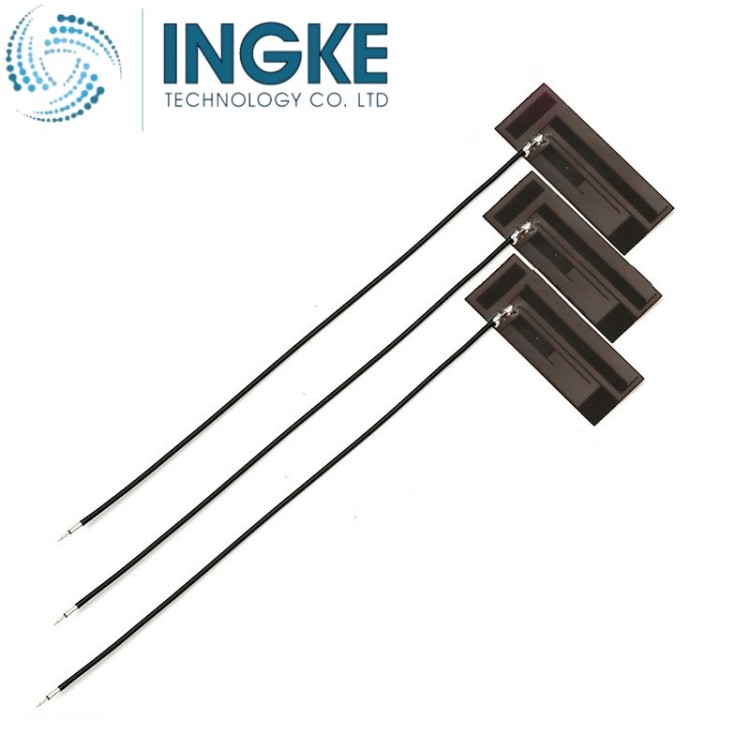

Description:1-2344654-0 TE Connectivity RF antennas

Lead Time:1-2 Weeks

MOQ:1PCS

Manufacturer:TE Connectivity

TE Internal #:1-2344654-0

TE Internal Description:WLAN DUAL BAND ANTENNA PCB V 180mm

Wireless Application:Bluetooth, Wi-Fi, Zigbee

Mounting Location:Internal/Embedded

Mounting Type:Adhesive

Antenna Termination:MHF, MHF1, U.FL, UMCC

Antenna Type:PCB

Impedance (Ω):50

VSWR (Max):<2:1

Antenna Operation:Passive

Frequency Band (MHz):2400 – 2500, 5150 – 5875

Nominal Frequency Range:2400 – 5950

Peak Gain (dBi):0 < 3

Gain (Max) (dB):2

Product Height :1 mm [ .039 in ]

Product Length:50 mm [ 1.181 in ]

Product Width:9.5 mm [ .374 in ]

Product Diameter:1.13 mm [ .044 in ]

Cable Length:.18 m [ .59 ft ]

Cable Insulation Diameter (Max):.7 mm [ .028 in ]

RoHS Compliant and REACH

100% compatible,100% test, warranty for 60 months

Factory with UL,supplier of Marvell & Honeywell
