2344655-2 TE Connectivity 100% cross INGKE 2344655-2

INGKE 2344655-2 100% replace 2344655-2 TE Connectivity RF antennas

Part No.:2344655-2 TE Connectivity

INGKE Part No.:YKRF-2344655-2

Made in China:INGKE TECHNOLOGY

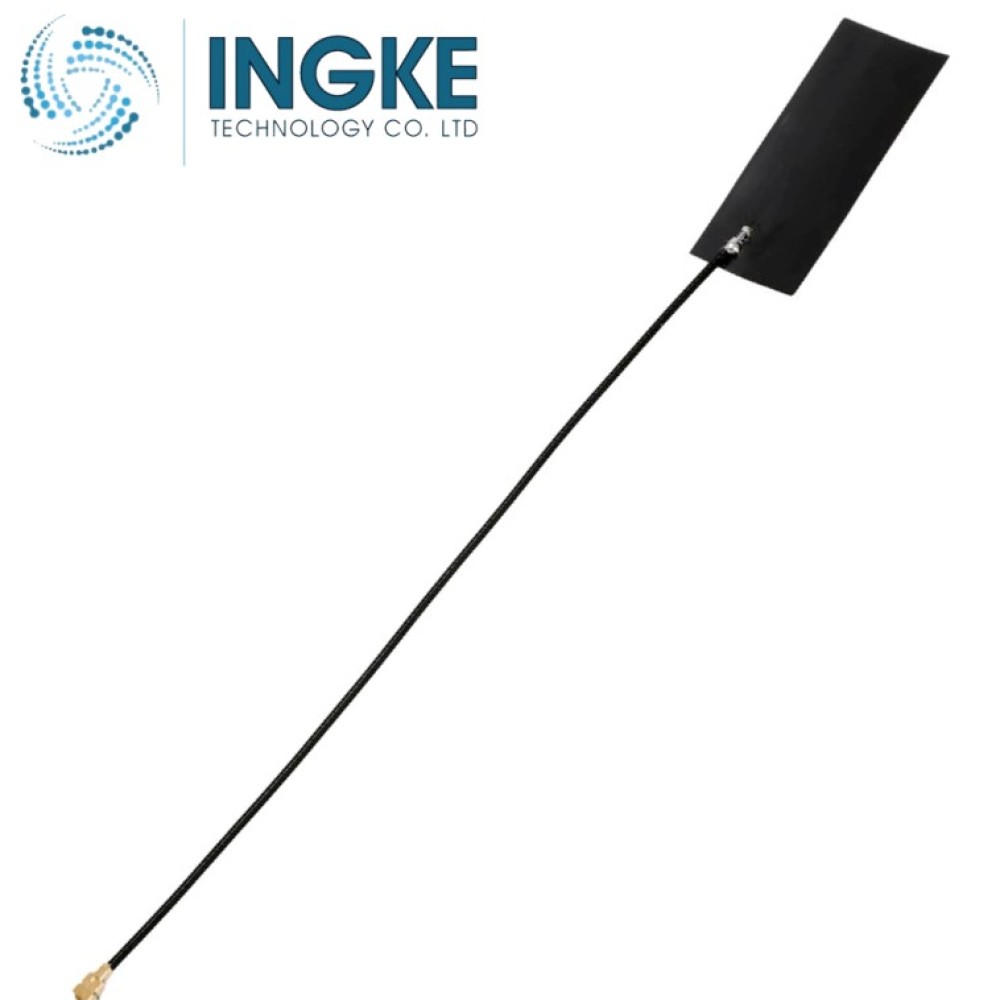

Description:2344655-2 TE Connectivity RF antennas

Lead Time:1-2 Weeks

MOQ:1PCS

Manufacturer:TE Connectivity

TE Internal #:2344655-2

TE Internal Description:PCB ANT, MHF, 100mm, Wi-Fi TRIPLE BAND

Wireless Application:Bluetooth, Wi-Fi, Zigbee

Mounting Location:Internal/Embedded

Mounting Type:Adhesive

Antenna Termination:MHF, MHF1, U.FL, UMCC

Antenna Type:PCB

Impedance (Ω):50

VSWR (Max):<2.7:1

Antenna Operation:Passive

Frequency Band (MHz):2450 – 2650, 5300 – 7000

Nominal Frequency Range:2400 – 7125

Peak Gain (dBi):3 < 6

Gain (Max) (dB):5.9

Product Height:1 mm [ .039 in ]

Product Length:33 mm [ 1.299 in ]

Product Width:8 mm [ .315 in ]

Product Diameter:1.13 mm [ .044 in ]

Cable Length:.1 m [ .33 ft ]

Cable Insulation Diameter (Max):.7 mm [ .028 in ]

RoHS Compliant and REACH

100% compatible,100% test, warranty for 60 months

Factory with UL,supplier of Marvell & Honeywell
