2108943-1 TE Connectivity 100% cross INGKE 2108943-1

INGKE 2108943-1 100% replace 2108943-1 TE Connectivity RF antennas

Part No.:2108943-1 TE Connectivity

INGKE Part No.:YKRF-2108943-1

Made in China:INGKE TECHNOLOGY

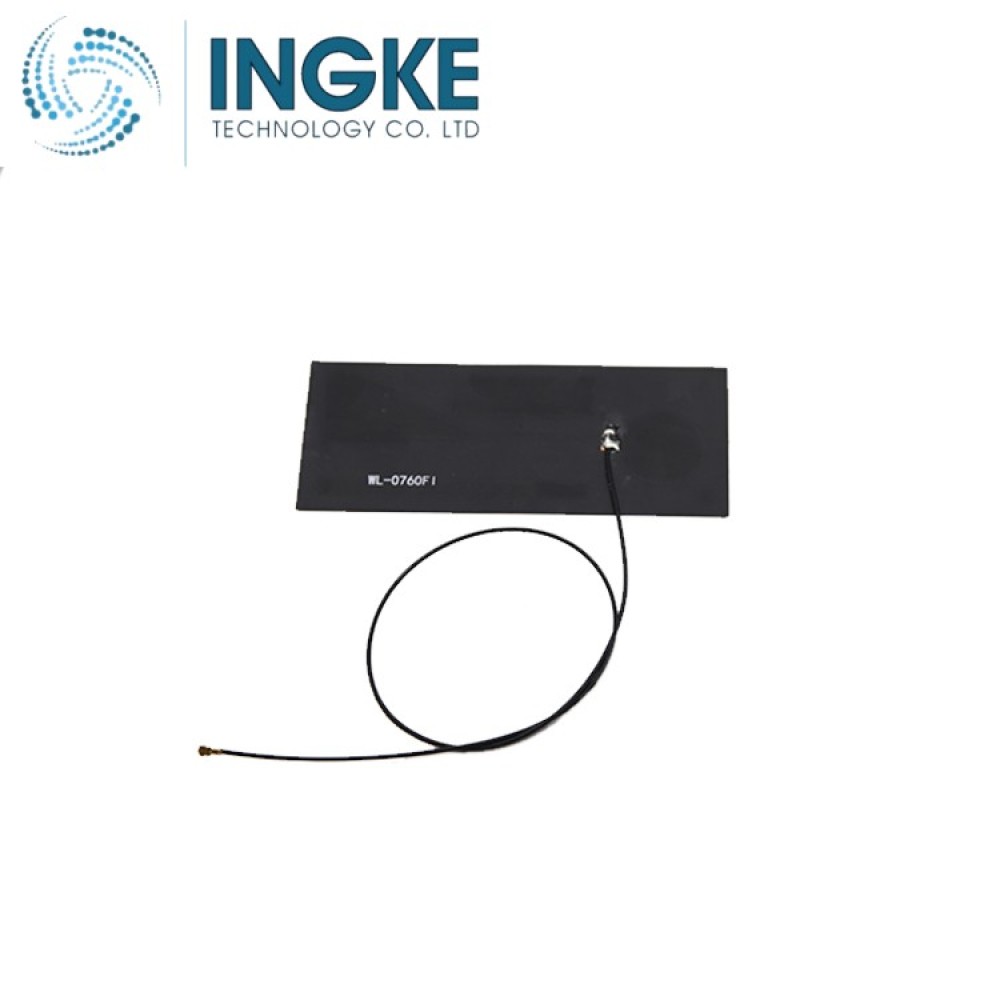

Description:2108943-1 TE Connectivity RF antennas

Lead Time:1-2 Weeks

MOQ:1PCS

Manufacturer:TE Connectivity

TE Internal #:2108943-1

TE Internal Description:PCB ANTENNA, MHF, 110MM, 698-2700MHz

Wireless Application:5G, Cellular, LTE

Mounting Location:Internal/Embedded

Mounting Type:Adhesive

Antenna Termination:MHF1

Antenna Type:PCB

Impedance (Ω):50

VSWR (Max):<3:1

Antenna Operation:Passive

Frequency Band (MHz):698 – 2700

Nominal Frequency Range:698 – 2700

Peak Gain (dBi):0 < 3

Gain (Max) (dB):2.5

Cable Insulation Diameter (Max):.7 mm [ .028 in ]

Product Height:1 mm [ .039 in ]

Product Length:65 mm [ 2.56 in ]

Product Width:15 mm [ .59 in ]

Product Diameter:1.13 mm [ .044 in ]

Cable Length:.11 m [ .36 ft ]

Cable Insulation Diameter (Max):.7 mm [ .028 in ]

RoHS Compliant and REACH

100% compatible,100% test, warranty for 60 months

Factory with UL,supplier of Marvell & Honeywell
