2118308-8 TE Connectivity 100% cross INGKE 2118308-8

INGKE 2118308-8 100% replace 2118308-8 TE Connectivity RF antennas

Part No.:2118308-8 TE Connectivity

INGKE Part No.:YKRF-2118308-8

Made in China:INGKE TECHNOLOGY

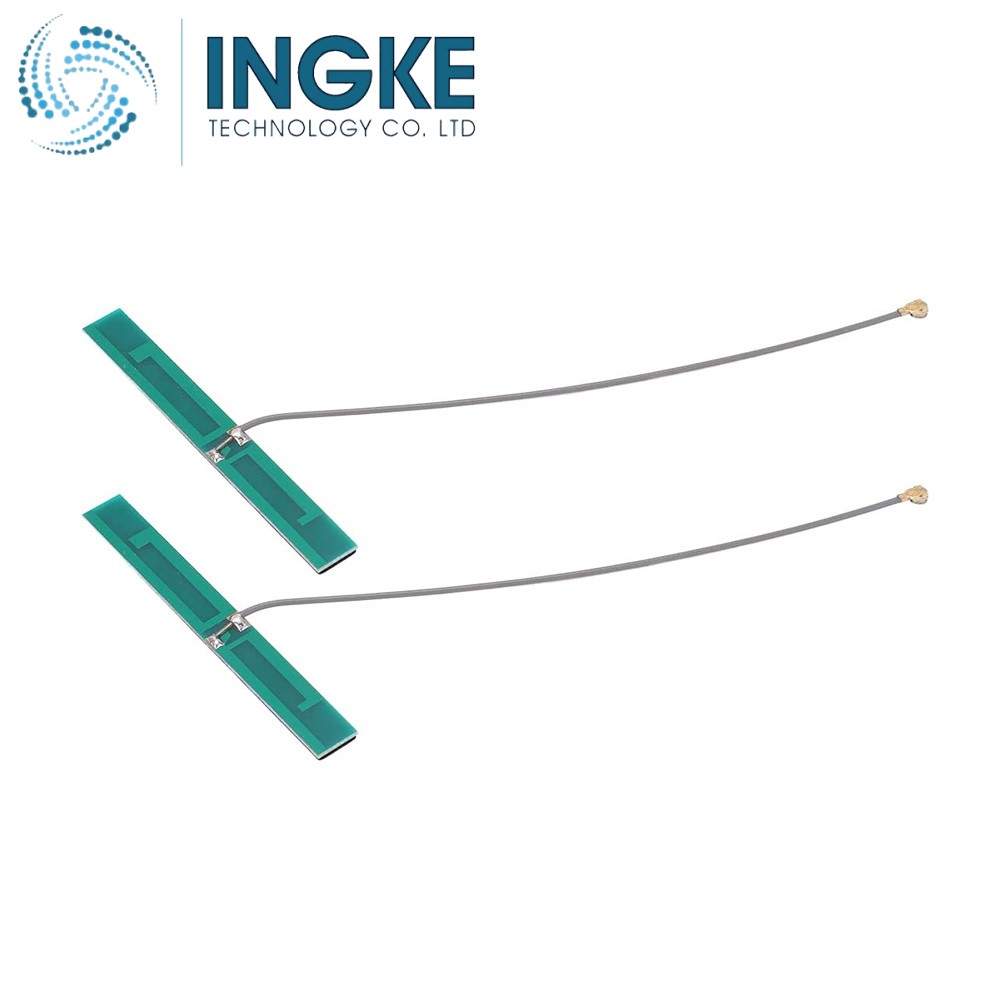

Description:2118308-8 TE Connectivity RF antennas

Lead Time:1-2 Weeks

MOQ:1PCS

Manufacturer:TE Connectivity

TE Internal #:2118308-8

TE Internal Description:4G WORLD BAND, METASPAN, PCB ANT, 290MM

Wireless Application:Bluetooth, Cat-M/NB-IoT, Cellular, Wi-Fi

Mounting Location:Internal/Embedded

Mounting Type:Adhesive

Antenna Termination:MHF, MHF1, U.FL, UMCC

Antenna Type:PCB

Nominal Frequency Range:698 – 2700

Peak Gain (dBi):3 < 6

Gain (Max) (dB):3.9

Impedance (Ω):50

Product Height :.02 mm [ .052 in ]

Product Length:110 mm [ 4.33 in ]

Product Width:14 mm [ .551 in ]

Cable Length:.29 m [ .95 ft ]

VSWRMounting Type:Adhesive

Polarization : Linear (Max):<3:1

RoHS Compliant and REACH

100% compatible,100% test, warranty for 60 months

Factory with UL,supplier of Marvell & Honeywell
