146153-9300 Molex 100% cross INGKE 146153-9300

INGKE 146153-9300 100% replace 146153-9300 Molex RF antennas

Part No.:146153-9300 Molex

INGKE Part No.:YKRF-146153-9300

Made in China:INGKE TECHNOLOGY

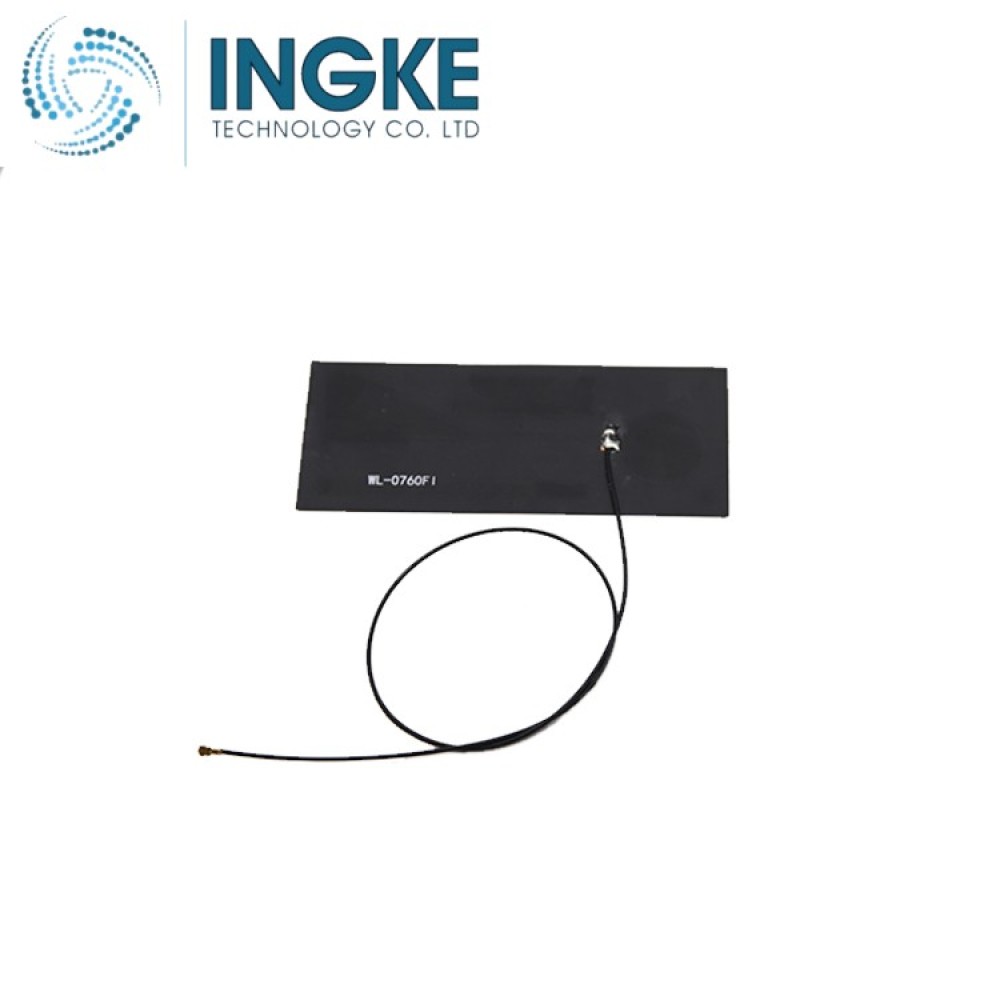

Description:146153-9300 Molex RF antennas

Lead Time:1-2 Weeks

MOQ:1PCS

Category:RF and Wireless,RF Antennas

Manufacturer:Molex

Product Category:Antennas

Product Type:2.4GHz Antenna - 2.4GHz, 5GHz, Bluetooth, WiFi, WLAN, Zigbee

Product:Vehicle Antennas

Type:Flexible Antenna

Minimum Frequency:2.4 GHz

Maximum Frequency:7.125 GHz

Protocol - WiFi - 802.11:WiFi

Protocol - Sub GHz:IoT

Mechanical Style:PCB Trace

Style:T-Bar Flex

Gain:2.2 dBi

Impedance:50 Ohms

Power Rating:2 W

Minimum Operating Temperature:- 40 C

Maximum Operating Temperature:+ 105 C

Electrical Type:Dipole

Number of Bands:3 Band

Mounting Style:Adhesive Mount

Termination Style:Connector

Antenna Connector Type:MHF-1 Plug

Application:2.4 GHz, 5 GHz, 6 GHz, WiFi 6E

Length:34.9 mm

Width:9 mm

Cable Type:1.13 mm Cable

Series:146153

Brand:Molex

Cable Length:300 mm

Frequency Range:2.4 GHz to 7.125 GHz

Polarization:Linear

Subcategory: Antennas

Part # Aliases:1461539300 01461539300

RoHS Compliant and REACH

100% compatible,100% test, warranty for 60 months

Factory with UL,supplier of Marvell & Honeywell
