ANT-5GW-FPC-LH200UF Linx Technologies 100% cross INGKE ANT-5GW-FPC-LH200UF

INGKE ANT-5GW-FPC-LH200UF 100% replace ANT-5GW-FPC-LH200UF Linx Technologies

Part No.:ANT-5GW-FPC-LH200UF Linx Technologies

INGKE Part No.: YKRF-ANT-5GW-FPC-LH200UF

Made in China:INGKE TECHNOLOGY

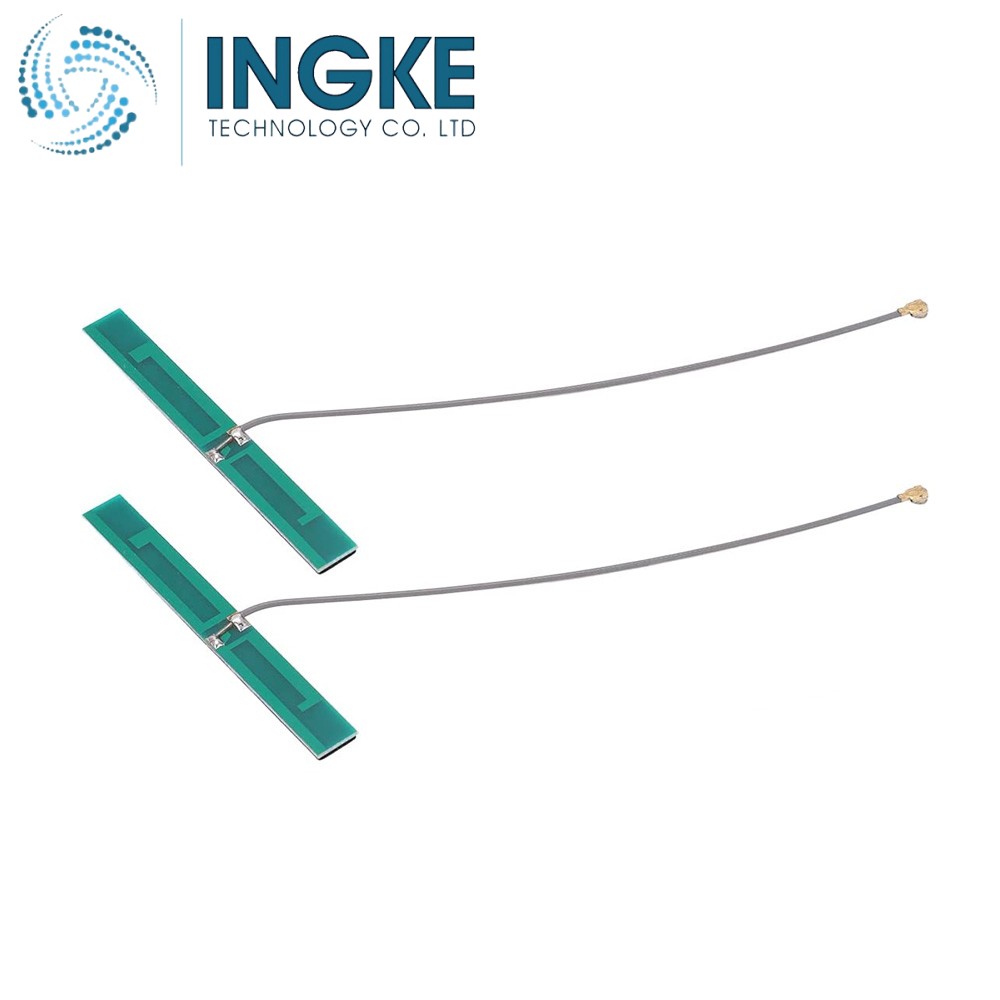

Description:ANT-5GW-FPC-LH200UF Linx Technologies RF antennas

Lead Time: 1-2 Weeks

MOQ: 1PCS

Category:RF and Wireless,RF Antennas

Mfr:Linx Technologies Inc.

Series:ANT-5GW-FPC-LH

Package:Bag

Product Status:Active

RF Family/Standard:Cellular

Frequency Group:Wide Band

Frequency (Center/Band):657.5MHz, 750.5MHz, 842.5MHz, 1.175GHz, 1.593GHz, 1.947GHz, 2.495GHz, 3.75GHz, 4.7GHz:

Frequency Range:617MHz ~ 698MHz, 698MHz ~ 803MHz, 791MHz ~ 894MHz, 832MHz ~ 1.518GHz, 1.525GHz ~ 1.661GHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz

Antenna Type:Flat Patch

Number of Bands:9

VSWR:1.6, 1.7, 1.8, 1.9, 2, 2.5, 2.7, 4.7

Gain:5dBi, 5dBi, 5.5dBi, 6dBi, 5.2dBi, 5.1dBi, 7dBi, 6.2dBi, 6.8dBi

Power - Max:2 W

Features:Cable - 200mm

Termination:MHF1, U.FL

Mounting Type:Adhesive

Height (Max):0.004" (0.10mm)

Applications:2G, 3G, 4G, 5G, LTE

RoHS Compliant and REACH

100% compatible, 100% test,  warranty for 60 months

Factory with UL, supplier of Marvell & Honeywell
