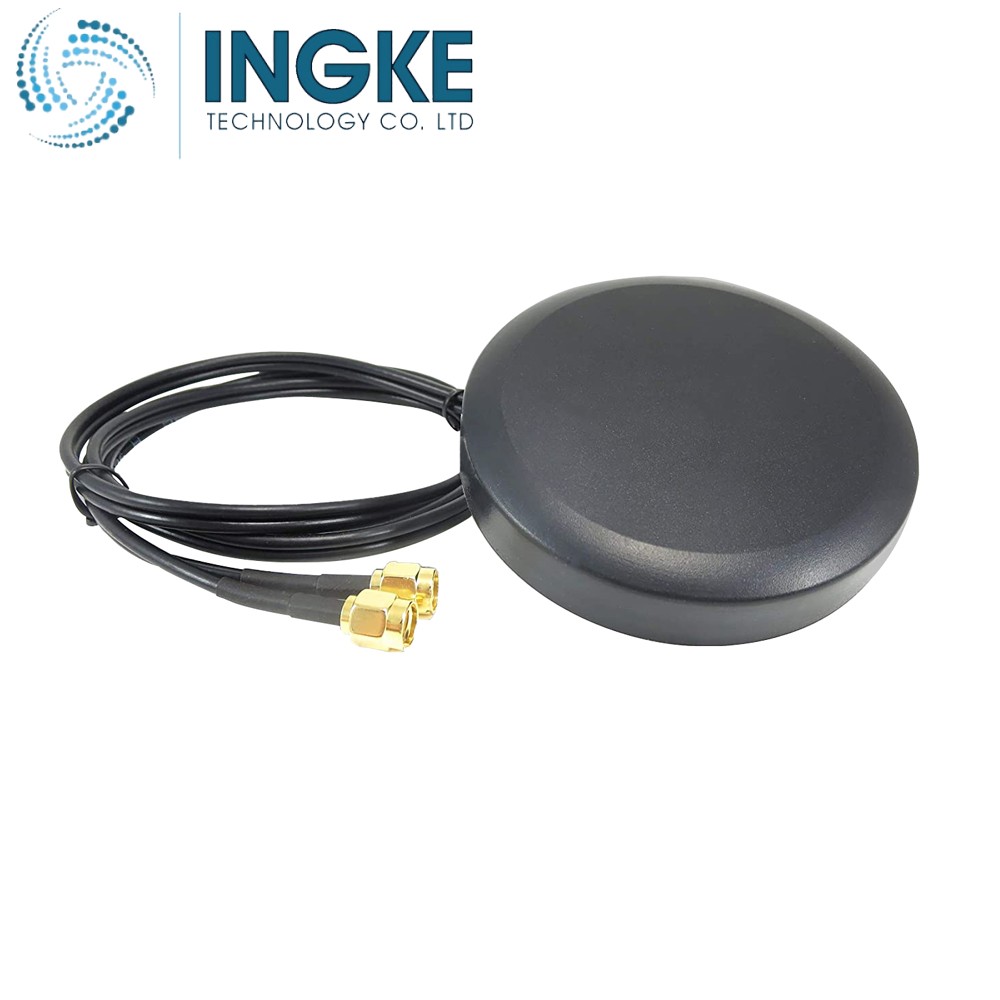

ANT-5GW-SPS1-2 Linx Technologies 100% cross INGKE ANT-5GW-SPS1-2

INGKE ANT-5GW-SPS1-2 100% replace ANT-5GW-SPS1-2 Linx Technologies

Part No.:ANT-5GW-SPS1-2 Linx Technologies

INGKE Part No.: YKRF-ANT-5GW-SPS1-2

Made in China: INGKE TECHNOLOGY

Description:ANT-5GW-SPS1-2 Linx Technologies RF antennas

Lead Time: 1-2 Weeks

MOQ: 1PCS

Category:RF and Wireless,RF Antennas

Mfr:Linx Technologies Inc.

Series:SPS

Package:Bag

Product Status:Active

RF Family/Standard:Cellular, General ISM, WiFi

Frequency Group:Wide Band

Frequency (Center/Band):418MHz, 460MHz, 788.5MHz, 1.9475GHz, 2.35GHz, 2.593GHz, 3.75GHz, 5.1625GHz

Frequency Range:410MHz ~ 426MHz, 450MHz ~ 470MHz, 617MHz ~ 960MHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.496GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5.925GHz

Antenna Type:Dome

Number of Bands:8

VSWR:1.3, 1.6, 1.8, 2.2, 2.9, 3

Gain:-0.1dBi, -4.2dBi, 5.4dBi, 3.8dBi, 4.2dBi, 2.7dBi, 2.7dBi, 5.1dBi

Power - Max:15 W

Features:Cable - 2m

Termination:SMA Male

Ingress Protection:IP65, IP67

Mounting Type:Panel Mount

Height (Max):0.917" (23.30mm)

Applications:2G, 3G, 4G, 5G, ISM, LTE, LoRaWAN, LPWA, NB-IoT, Sigfox, Wi-Fi

RoHS Compliant and REACH

100% compatible, 100% test,  warranty for 60 months

Factory with UL, supplier of Marvell & Honeywell
