INGKE YKGD-801002NL 100% replace JXR8-1002NL Pulse

YKGD-801002NL JXR8-1002NL Pulse

INGKE YKGD-801002NL 100% compatible with JXR8-1002NL Pulse

Part No.:  J0B-2005NL Pulse

INGKE Part No.: YKGD-801002NL

Made in China: INGKE Technology

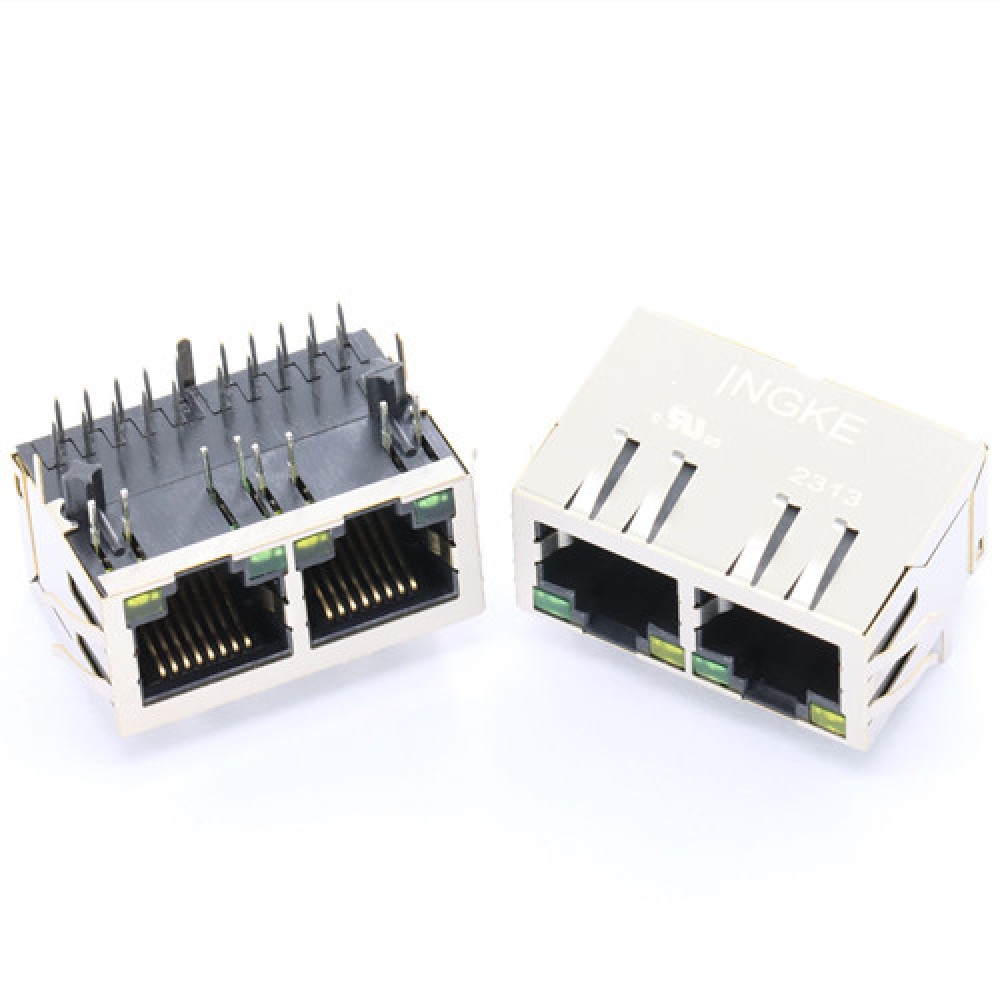

Description:  JXR8-1002NL Pulse 1000Base-T 1x2 ports RJ45 with integrated magnetics

MOQ: 1PCS

Lead Time: 1-2 Weeks

Speed: 1000BASE-T

Latch: Tab down

Number of Ports: 1x2 ports

LED:  Green - Yellow

Shielding: Shielded, EMI Finger

PoE Rating: No POE

PCB Mount: Through Hole

Operating Temperature: -40°C ~ 85°C

Mating Cycle: 750

Shielding Plating: 30µ" Nickel

Contact Material: Phosphor Bronze

Contact Plating: 30µ" Gold

Plastic Housing Material: Thermoplastic LCP black

Plastic Housing Flammability: Rating UL94 V-0

Packaging: Tray

Categories: Connector, Interconnect, Modular Connectors

MSL: 1 (Unlimited)

Lead Free, RoHS Compliant

INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months

Factory with UL, supplier of Marvell & Honeywell

Chinese UL factory for producing JXR8-1002NL Pulse RJ45 with integrated magnetics
