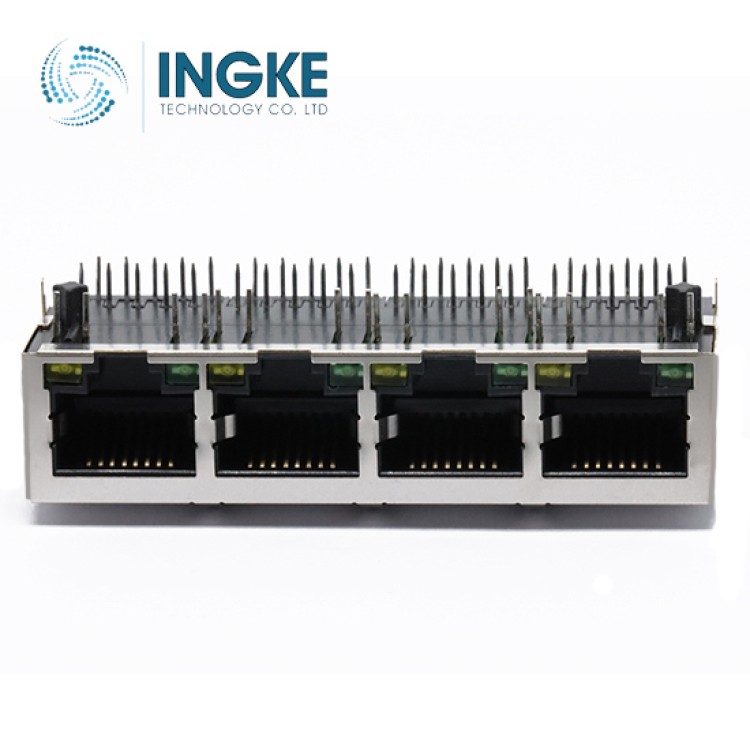

YKJD-801402NL cross HR911402A 1x4 RJ45 10/100 Base-T with LED

INGKE YKJD-801402NL cross HR911402A 1x4 RJ45 10/100 Base-T with LED

Part No.: HR911402A

INGKE Part No.: YKJD-801402NL

Chinese factory: INGKE Technology

Description: YKJD-801402NL cross HR911402A 1x4 RJ45 Jack

MOQ: 1PCS

Lead Time: 1-2 Weeks

 INGKE UL Number E530462

• Part No.: HR911402A
• Chinese Manufacturer: INGKE Technology
• INGKE Part No.: YKJD-801402NL
• Place of Origin: China
• Product Category: Connectors, Interconnects, Modular Connectors - Jacks With Magnetics
• Type: RJ45 Modular
• Gender: Jack (Female)
• Configuration: 1x4
• Number of Rows: 1 Row
• Number of Ports: 4 Port
• Number of Cores Per Port: 4
• Orientation: 90° Angle (Right)
• Mounting Style: Through Hole
• Termination Style: Solder
• Tab Direction: Down
• LED Color: Green - Yellow
• Contact Material: Tin
• Contact Plating: Gold
• Housing Material: Thermoplastic
• Shield Material: Copper Alloy
• Shielding: Shielded
• Features: Board Guide
• Flammability Rating: UL 94 V-0
• Operating Temperature: -40°C ~ 85°C
• Applications: 10/100 Base-T
• Lead Free: RoHS Compliant
